3G Tracking Device integrates U-Blox Chip compatible

3G Tracking Device integrates U-Blox Chip compatible with UMTS/HSPA module for easy 2G to 3G upgrade

Model NO: TK319-H

Product introduce:

TK319-H Based on a u‑blox receiver module with integrated UMTS/HSPA module, the TK319-h 3G vehicle tracker can be located anywhere, anytime via a free Android or iPhone mobile phone app.In addition to real time tracking, TK319-H provides flexible geofence alerts, and can even monitor how fast it is driving. It also works indoors thanks to a proprietary dead reckoning algorithm that delivers a position even when satellites are out of sight. Accurate down to 1.5 meters.

Share to:
  • Introduction
  • Downloads

Description

  • TK319-H Based on a u‑blox receiver module with integrated UMTS/HSPA module, the TK319-h 3G vehicle tracker can be located anywhere, anytime via a free Android or iPhone mobile phone app.In addition to real time tracking, TK319-H provides flexible geofence alerts, and can even monitor how fast it is driving. It also works indoors thanks to a proprietary dead reckoning algorithm that delivers a position even when satellites are out of sight. Accurate down to 1.5 meters.



  • Developed with the latest in cutting edge state of the art commercial GPS tracking technology, the TK319-H tracking device is a self-contained GPS tracking device ideal for commercial fleets of any size. The TK319-H is optimized to work virtually anywhere in the world to improve data collection and efficiency of the vehicles in your fleet. With a durable, waterproof plastic enclosure and low battery consumption features, this vehicle tracking device been designed to be discreet for undetectable GPS tracking in cars, trucks, vans and all other kinds of motor vehicles. The TK319-H can lock in on a vehicle with accuracy as precise as 5 meters to help you ensure your assets reach your customers without delay. Improve your maintenance practices, fuel consumption, and most importantly, your customer satisfaction rates with the TK319-H by Eelink.






Typical Application Industry

Though the TK319-H is built to meet the high demands of commercial vehicle tracking, the device works equally well as a personal and affordable GPS tracker for cars. The wide ranging applications of the TK319-H makes it easy to meet a host of GPS car tracking needs regardless of fleet size. Whether you’re a CEO of a massive truck fleet, manager of a car rental company, or a parent keeping tabs on a teenager, the TK319-H delivers reliable reports in a low-cost tracking device complete with a GPS tracking app.

  • Logistics Enterprises
  • Car Rental Company
  • Logistics Distribution
  • Intelligent Transportation
  • Safety Supervision






Alarm Type

  • Vibration Alarm
  • Collision / falling Alarm
  • Speed Alarm
  • Geo-fence Alarm




Specifications

GPS Chip UBLOX GPS, GNASS Chip
Antenna Built-in GPS Patch antenna; UMTSS/HSPA antenna
GPS Positioning Accuracy 5m-15m (Depending on GPS Signal)
LBS Positioning Accuracy ~200m (Depending on density of base stations)
GPS Frequency L1, 1575.42MHz C/A code
Network UMTS/HSPA, GSM, GPRS, EDGE
Frequency bands UMTS/HSPA 800/850/900//1900/2100 MHz
GSM850/1900 and 900/1800 MHz Quad-band
GPRS Class 12, TCP/IP
LED Indicator GPS-Blue; GSM-Red
Memory 4MB for application and data storage
Hot/Warm/Cold Start <3x, <15s, <60s
Built-in Battery Embedded 150mAh battery for emergency alarm when removing main power
Standby 4 Hours
Work Current <30 mA
Standby Current <15 uA
Charger 5VDC/1A
IP Waterproof Level IP65
Dimensions (mm) 89mm x 37mm x 12mm
Operating Voltage 9-72V DC
Environment Temperature -20C – 65C
Environment Humidity 20% ~ 80% RH
Net Weight 50g




Certifications:

  • PTCRB
  • GCF
  • FCC
  • IC
  • R&TTE
  • RCM
  • CCC
  • Giteki
  • Anatel
  • AT&T
  • Rogers (all planned)



Features

  • Sufficient 4Megabyte storage space for application and data storage
  • A carefully embedded 150mAh battery for emergency alarm when removing main power
  • Perfect for logistics enterprises, car rental companies, logistics distribution, intelligent transportation, and safety supervision
  • Over The Air (OTA) application firmware updates are supported through a TFTP connection to a server
  • Uses GPS (uBlox IC) satellite location in combination with UMTS/HSPA module of uBlox’s UMTS/HSPA to report precise location.




Additional Features:

  •   Advanced Data Reporting
  • The TK319-H can initiate data reporting through several pathways including UMTS/HSPA’s SMS, TCP/IP or UDP pathways. The vehicle tracking device can also report over a physical UART connection for variable data reporting connections. Network provisioning via SIM technology is designed for both reliability and cost-efficiency. The TK319-H can be provisioned for TCP/IP, UDP and SMS data services for application command and data transactions within the 850, 900, 1800 and 1900 MHz GSM bands and 800,850,900,1900 and 2100MHz UMTS/HSPA bands.

     Specialized GPS Functions

  • Setup and monitor geographic fences (Geo-Fence)
  • GPS data reporting
  • GPS power control
  • GPS status reporting



     Device Initiated TCP/IP or UDP reporting

  • Low battery condition
  • Geographic Fence Violation Notifications
  • Report Record Queue
  • User defined IP addresses
  • Schedule Recurring Events



     Automatic Field Lockup Recovery

  • Get a powerful hardware watchdog featuring a power and reset cycle
  • Circuit Switched Data (SMS) code maintenance
  • Hard Reset
  • Restore Factory Defaults
  • Software downloads using OTA



     Virtual AT Command Processor

  • SMS connection
  • TCP/IP connection
  • UDP/IP connection



     OTA Code Update

  • Uses TFTP
  • 100% Buffered



     APN support

  • Optional credential verification

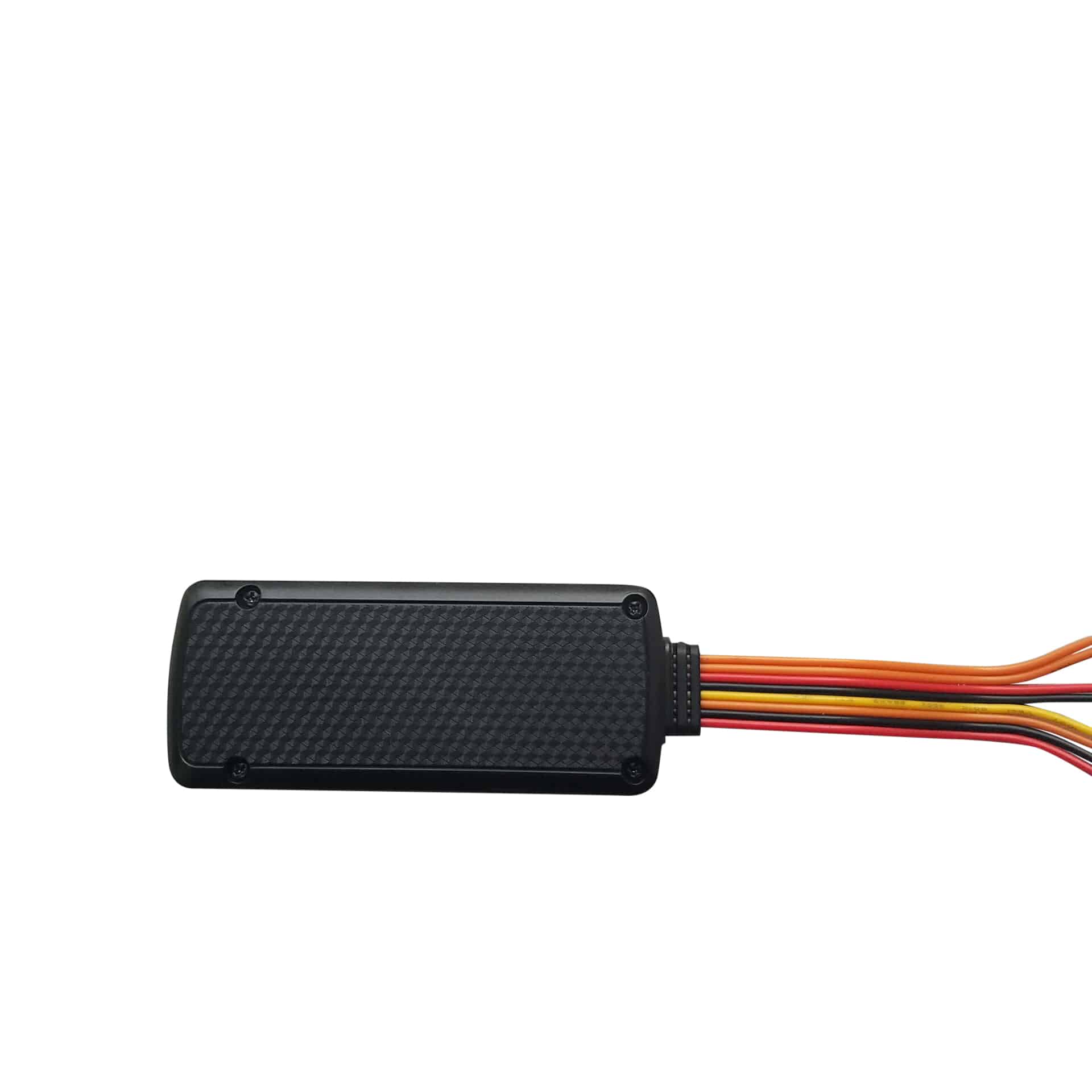

Product pictures:



TK319-H 3G Vehicle Tracking Systems For Small Business 3G Tracking Device
